KITAKO - SHIMADA LATHES
KITAKO-SHIMADA: Breaking Though Boundaries....Now Even Faster
As only a 4-spindle system can do. Loading and Unloading all happening while machining! Zero downtime.
As a top machine tool manufacturer, Kitako-Shimada builds lathes that offer a zero downtime! Kitako-Shimada, builds vertical and horizontal lathes, using the highest quality components with an emphasis on performance.
Their VT4-350 and HS4200 series high-speed CNC lathes are a top quality machine tool to buy, especially when you are looking to increase your productivity and lower your downtime.
How do they achieve the zero downtime with the part loading and unloading?
Kitako-Shimada builds their lathes with 4-spindles allowing their machines to multi-task.
While two spindles are machining, two spindles are loading/unloading = zero downtime.
Choose from the HS 4200 4- Spindle Horizontal High Speed CNC Lathe or the
KITAKO-SHIMADA
4-SPINDLE HORIZONTAL CNC LATHES

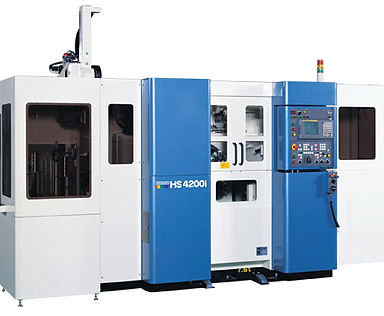

HS4200 Series is an Ultra High- Speed Production - 4 Spindle Horizontal CNC lathe.
The HS4200 series comes with high-speed automatic part loading system allowing- ZERO part loading/unloading time.
With 4 models in this series, you will find the right high-speed lathe for your shop.
The models breakdown as follows:
-
The HS4200i: is equipped with KITAKO standard high-speed part loading system.
-
The HS4200iM: is equipped with KITAKO standard high-speed part loading system and live tooling capability.
-
The HS4200n: is the basic model where the loading system is optional.
-
The HS4200nM: is also a basic model with live tooling and the loading system is also optional.
The HS4200i is the newest version of Kitako-Shimada's and is a uniquely designed 4-spindle lathe where the two spindles machine parts at the same time while the other two spindles are able to load or unload parts. This reduces the loading and unloading time for your parts to Zero!
By increasing the rapid feed rate on each axis, idling time of the machine has become minimal, and the actual efficiency has been drastically improved.
This machine has a Built-in, ultra high speed part loading system. And Kitako-Shimada offer a variety of machine layouts and options that can meet a range of a customer's requirements.
As two parts are being machined, and parts are loaded /unloaded with "NO IDLE TIME", the process is completely stable.
This machine has "stable and accurate part loading process on the chuck" which ensures the stability of this process.
Kitako-Shimada has a carrier indexing time of 1.5 seconds, which is the approximate time needed for parts loading/unloading.
This machine also comes with Box slideways which ensue you get a high-performance in machining tight tolerances for extended continuous operations while the rapid feed rate remains highest in its class for box slideways.
Your first and second operations can be performed by flipping parts with the built-in part-reversing unit.
This machine comes with an exceptionally good chip disposal designed for unmanned operation. And you can get different types of parts stocker as well as other options that are available to match your needs for a system layout.
If you are looking for this 4-spindle lathe without the part loading system, the HS4200n is the model that you will want to buy.

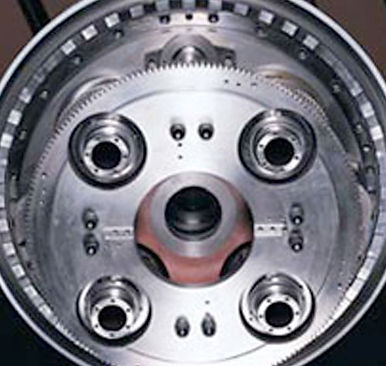

The carrier drum indexing mechanism is a high-accuracy, high repeatability carrier drum positioning driven by a large, rigid curvic coupling
The 4-spindles on this HS4200 are constructed with hardened and expertly ground components,(Something that is important to us with our history and skills in machine tool rebuilding)
These components are supported by precision double-row cylindrical roller bearings and angular contact bearings, with maintenance-free style grease cartridge built right into the carrier drum.
8-Station Turret: High-speed, bi-directional, random indexing employs a revolutionary 3-piece curvic coupling design. With optional turrets, OD/ID tooling can be mounted on any station!
The Chip Conveyor has a standard hinge type and is included. Additional chip conveyor types are available. Let us know!
The Kitako-Shimada HS4200's hydraulic unit comes with an energy saving pump and inverter.
Box-Shaped Slideways: To ensure high-accuracy and machine longevity, each machine model comes equipped with box-shaped slideways.
Mating surfaces are covered with a special synthetic resin material.
Ball-screw drives are forced lubricated. and Telescoping steel covers protect the slideways and screws from chips, coolant and debris.
Other Features:
The Kitako-Shimada HS4200 series offers a built-in high-speed gantry type of part loading system.
Proven to be a very reliable system, it has 1-Arm and 2-Grippers on the loading arm.
It is also equipped with a 90-degree work reversing unit right above the loading spindles, and work-feeder packaged together. Both sides of a part can be simultaneously machined using this system!
The lathe is designed with three independently isolated areas.
Upper: The upper is the part loading arm area. Shimada offers automated parts loading systems such as standard gantry and robotics, as well as offering customized solutions to meet your requirements.
Middle: The part loading chuck area where parts can be loaded and unloaded on the upper two spindles while the lower two spindles are cutting parts at the simultaneously.
Machining Area:
The two lower spindles cuts two parts simultaneously either two identical parts or front end and back end of the same part!
OTHER FEATURES:
The machine has a remote pendant for operating the part loading system. Programming and manual operation of parts loading system is performed on the same control panel. Basic 8-pattern modes are available in the controller, enabling easy programming and selection of loading modes.
The NC Operation Panel: The centralized operation panel is used for commands and displays tool post numbers independently for each of the left and right side spindles. The swivel design makes it accessible for operators to setup parts with ease
4-SPINDLE VERTICAL CNC LATHE
The Kitako-Shimada VT4-350 sets itself apart with a vertical design. Just like the Kitako-Shimada HS4200 series these are high production 4-spindle lathes with a Zero downtime! This VT4-350 vertical 4-spindle CNC lathe is the latest solution from Shimada, Japan's leading Multi-spindle specialist. As a FM-cell, the machine facilitates automatization of a manufacturing line.
Because of its vertical type, it enables handling of heavy workpieces and a supply of auto-loading system.
The loading spindle is protected against splashing coolant water and chips by a cover and provides the connection with a robot or an auto-loader.
The VT4-350 has an inventive spindle offset function which compensates an error between each spindle in microns.
The spindle speed can be controlled independently for each spindle.
The operational and mechanical alarm message reduces the hardship of maintenance. The user parameters of standard supply can reflect your concept towards operations. This machine offers many advantages of a vertical type CNC lathe, including a smaller footprint on your shop's floor space.
Main Specifications:
-
ModelVT4-350
-
Max. Turning Diameter13.8"
-
Max. Turning Length7.9"
-
X-Axis Stroke12"
-
Z-Axis Stroke18"
-
X-Axis Rapid Feed788"/min.
Z-Axis Rapid Feed788"/min.
Spindle Speed Range3200 rpm
Number of Spindles-4
Spindle Nose ASA A2-8
Carrier Index Time180° / 6.0sec. 90°/ 5.0sec.
Turret Tool Capacity8 (OD:4, ID:4)
